Technical Specifications

• Polymer-based RP column with C18 groups
• Relatively large pore size is suitable for the analysis of amino acids, peptides, and proteins
• Usable in a wide pH range from pH 2 to 13
• Usable in 100 % water and buffer solution
• Best used for the analysis of basic substances (silanol free, less tailing)

Product code: F7620004

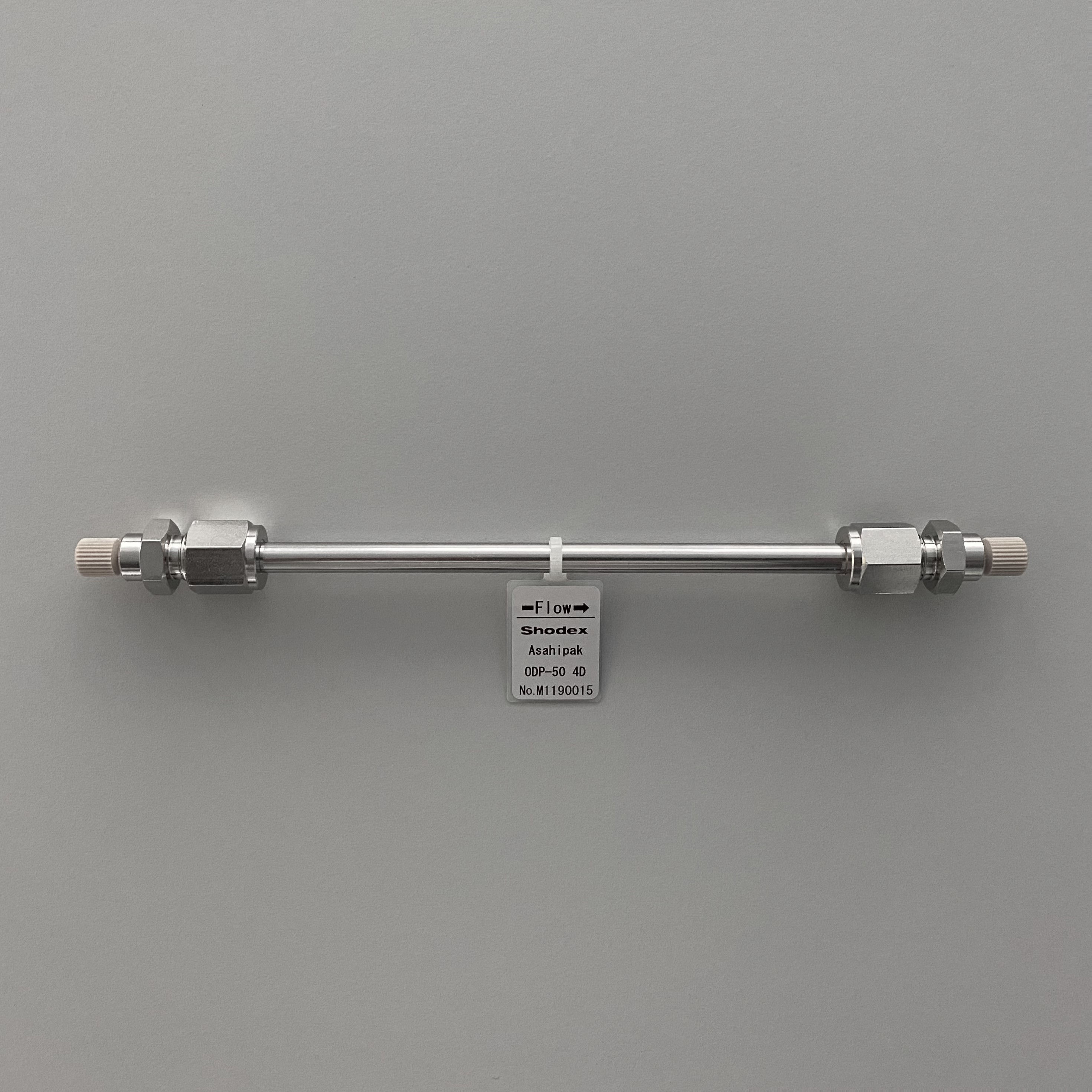

Product name: Asahipak ODP-50 4D
Separation: RP
Functional group: C18
Gel material: Polyvinyl alcohol
Plates per column: ≥ 9,000
Particle size: 5 µm
Pore size: 250 Å
Size (ID x length): 4.6 x 150 mm
Housing material: steel
Maximum pressure: 15 MPa (150 bar)
Usual flow rate: 0.5 to 0.8 mL/min
Maximum flow rate: 1.5 mL/min
Temperature range: 4 to 60°C
pH range: 2 to 13
Salt concentration: ≤ 0.1 M
Shipping solvent: H2O/ACN = 35/65
USP: L67
Info: Carbon load 17%
Country of Origin: Japan
HS code: 90279000

The corresponding guard column is Asahipak ODP-50G 4A, F6710022.
