HILICpak VT-50 column

with quaternary ammonium groups

The robust HILIC column for anionic substances (especially phosphate compounds)

Product information

  • Suitable for anionic substances (especially phosphate compounds) analysis using HILIC mode

  • Use of some eluents add ion exchange mode

  • Polymer-based packing material provides excellent chemical stability and minimum deterioration over an extended time period

  • Suitable for LC-MS/MS analysis

Covered Plants

Glyphosate analysis with HILICpak VT-50 column



Organophosphate herbicides such as glyphosate and glufosinate are globally used non-selective weed killer, effective for most weeds. Most countries set regulations for organophosphate herbicides use due to concerns on their toxicity to humans. Therefore, monitoring their concentrations in environment and foods are required.


Those compounds are highly hydrophilic, and thus HPLC is a preferred analysis method. However, they are hardly retained under reversed phase mode. To compromise the problem, methods using pre-column derivatization or addition of ion-pair reagent to the eluent are often applied.

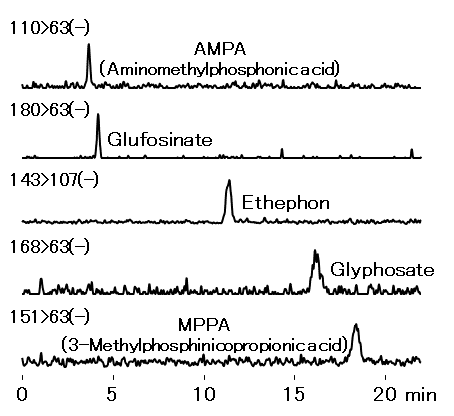

In this application, HILICpak VT-50 2D, a polymer-based HILIC mode column, was used under alkaline condition. The results demonstrated the method’s feasibility for the simultaneous LC/MS/MS analysis of glyphosate, glyfosinate, and their metabolites, as well as ethephon, a plant growth regulator which has similar structure to glyphosate. The method proved to provide 1 ng/mL level quantification of the compounds.



The method developed here provides a simple and highly sensitive analysis without the use of derivatization nor use of ion-pair reagent. The pH of the eluent used was about 9, thus the system needs to be alkaline tolerant. The use of alkaline eluent improves the peak shape (less tailing) of glyphosate than using an acidic condition. Note that these phosphorus containing pesticides have tendencies of forming metal coordination compounds, therefore select PEEK materials for the flow-line after the injector wherever it's possible.

Download application notes:

Shodex Technical Article 2_Simultaneous LC-MS Analysis of Glyphosate and Its Related Compound (pdf)

Shodex HILICpak VT-50 Glyphosate Agilent Application Note (pdf)

Shodex HILICpak VT-50 Glyphosate Waters Application Poster (pdf)


Product overview

Product code
Product name
Separation
Functional group
Gel material
Plates per column
Particle size
Pore size
Size (ID x length)
Housing material
F7630400
HILICpak VT-50 2D
HILIC
Quaternary ammonium
Polyvinyl alcohol
≥ 4,500
5 µm
100 Å
2.0 x 150 mm
PEEK
F6711300
HILICpak VT-50G 2A
HILIC
Quaternary ammonium
Polyvinyl alcohol
(guard)
5 µm
-
2.0 x 10 mm
PEEK

Product details

Product name
Maximum pressure
Usual flow rate
Maximum flow rate
Temperature range
pH range
Salt concentration
Shipping solvent
USP
HILICpak VT-50 2D
10 MPa (100 bar)
0.2 to 0.3 mL/min
0.5 mL/min
4 to 60°C
2 to 13
-
25 mM HCOONH4 aq. /CH3CN = 15/85
-
HILICpak VT-50G 2A
-
0.2 to 0.3 mL/min
0.5 mL/min
4 to 60°C
2 to 13
-
25 mM HCOONH4 aq. /CH3CN = 15/85
-

Product info

Download documents

Technical Articles:

Shodex Technical Article 2_Simultaneous LC-MS Analysis of Glyphosate and Its Related Compound (pdf)

  • bestseller column HILICpak VT-50 for glyphosate

Shodex Technical Article 12_Simultaneous LC-MS Analyses of Phosphorylated Saccharides (pdf)

  • Application overview for phosphate sugars (glucose-6-phosphate G6P, fructose-6-phosphate F6P, glucose-1-phosphate G1P, fructose-1-phosphate F1P)

Shodex Technical Article 14_Analysis of Functional Ingredients in Dietary Supplement (pdf)

  • overview about different functional food ingredients
