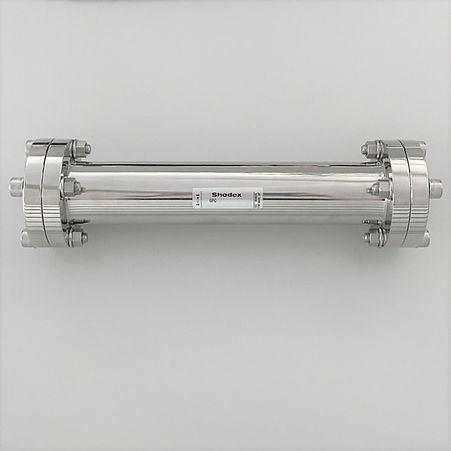

Shodex GPC preparative.jpg

GPC preparative columns

in THF or chloroform, made to order

For large scale size exclusion chromatography with organic solvents

Download the product overview (pdf)

Product information



GPC FP-2002

  • Newly developed styrene divinylbenzene copolymer monodisperse particles

  • Can deliver at four times higher flow rate (10 mL/min or more) compared with conventional products

  • Achieves rapid recycling separation

  • Suitable for the separation of samples in a wide molecular weight range due to its wide linear range and large pore volume

  • Usable with various organic solvents such as THF, toluene, dichloroethane, ethyl acetate, DMF, and acetone used in GPC analysis in addition to chloroform

Preparative dimensions of the GPC KF-800 column series:

in THF:

GPC KF-2000 series, 20.0 x 300 mm

GPC KF-5000 series, 50.0 x 300 mm

in Chloroform:

GPC K-2000 series, 20.0 x 300 mm

GPC H-2000 series, 20.0 x 500 mm

GPC K-5000 series, 50.0 x 300 mm

Preparative columns are made to order (customized for every customer), the production time is 3 month.

Product overview

Product code
Product name
Separation
Functional group
Gel material
Plates per column
Particle size
Pore size
Size (ID x length)
Housing material
F6102520
GPC FP-2002
GPC
-
Styrene divinylbenzene copolymer
≥ 30,000
8 µm
-
20.0 x 600 mm
steel
F6700340
GPC FP-G 8B
GPC
-
Styrene divinylbenzene copolymer
(guard)
8 µm
-
8.0 x 50 mm
steel
F6102401
GPC KF-2001
GPC
-
Styrene divinylbenzene copolymer
≥ 18,000
6 µm
50 Å
20.0 x 300 mm
steel
F6102402
GPC KF-2002
GPC
-
Styrene divinylbenzene copolymer
≥ 18,000
6 µm
150 Å
20.0 x 300 mm
steel
F6102425
GPC KF-2002.5
GPC
-
Styrene divinylbenzene copolymer
≥ 18,000
6 µm
300 Å
20.0 x 300 mm
steel
F6102403
GPC KF-2003
GPC
-
Styrene divinylbenzene copolymer
≥ 18,000
6 µm
500 Å
20.0 x 300 mm
steel
F6102404
GPC KF-2004
GPC
-
Styrene divinylbenzene copolymer
≥ 18,000
6 µm
1,500 Å
20.0 x 300 mm
steel
F6102405
GPC KF-2005
GPC
-
Styrene divinylbenzene copolymer
≥ 18,000
7 µm
5,000 Å
20.0 x 300 mm
steel
F6102406
GPC KF-2006
GPC
-
Styrene divinylbenzene copolymer
≥ 18,000
10 µm
10,000 Å
20.0 x 300 mm
steel
F6102409
GPC KF-2006M
GPC
-
Styrene divinylbenzene copolymer
≥ 18,000
10 µm
10,000 Å
20.0 x 300 mm
steel
F6700406
GPC KF-G 8B
GPC
-
Styrene divinylbenzene copolymer
(guard)
15 µm
-
8.0 x 50 mm
steel
F6108010
GPC KF-5001
GPC
-
Styrene divinylbenzene copolymer
-
15 µm
50 Å
50.0 x 300 mm
steel
F6108020
GPC KF-5002
GPC
-
Styrene divinylbenzene copolymer
-
15 µm
150 Å
50.0 x 300 mm
steel
F6108025
GPC KF-5002.5
GPC
-
Styrene divinylbenzene copolymer
-
15 µm
300 Å
50.0 x 300 mm
steel
F6108030
GPC KF-5003
GPC
-
Styrene divinylbenzene copolymer
-
15 µm
500 Å
50.0 x 300 mm
steel
F6108040
GPC KF-5004
GPC
-
Styrene divinylbenzene copolymer
-
15 µm
1,500 Å
50.0 x 300 mm
steel
F6700408
GPC KF-G 20C
GPC
-
Styrene divinylbenzene copolymer
(guard)
15 µm
-
20.0 x 100 mm
steel
Product code
Product name
Separation
Functional group
Gel material
Plates per column
Particle size
Pore size
Size (ID x length)
Housing material
F6102301
GPC K-2001
GPC
-
Styrene divinylbenzene copolymer
≥ 18,000
6 µm
50 Å
20.0 x 300 mm
steel
F6102312
GPC K-2002
GPC
-
Styrene divinylbenzene copolymer
≥ 18,000
6 µm
150 Å
20.0 x 300 mm
steel
F6102315
GPC K-2002.5
GPC
-
Styrene divinylbenzene copolymer
≥ 18,000
6 µm
300 Å
20.0 x 300 mm
steel
F6102303
GPC K-2003
GPC
-
Styrene divinylbenzene copolymer
≥ 18,000
6 µm
500 Å
20.0 x 300 mm
steel
F6102304
GPC K-2004
GPC
-
Styrene divinylbenzene copolymer
≥ 14,000
7 µm
1,500 Å
20.0 x 300 mm
steel
F6102305
GPC K-2005
GPC
-
Styrene divinylbenzene copolymer
≥ 10,000
10 µm
5,000 Å
20.0 x 300 mm
steel
F6102306
GPC K-2006
GPC
-
Styrene divinylbenzene copolymer
≥ 10,000
10 µm
10,000 Å
20.0 x 300 mm
steel
F6102309
GPC K-2006M
GPC
-
Styrene divinylbenzene copolymer
≥ 10,000
10 µm
10,000 Å
20.0 x 300 mm
steel
F6700407
GPC K-G 8B
GPC
-
Styrene divinylbenzene copolymer
(guard)
15 µm
-
8.0 x 50 mm
steel
F6102001
GPC H-2001
GPC
-
Styrene divinylbenzene copolymer
≥ 13,000
15 µm
50 Å
20.0 x 500 mm
steel
F6102002
GPC H-2002
GPC
-
Styrene divinylbenzene copolymer
≥ 13,000
15 µm
150 Å
20.0 x 500 mm
steel
F6102025
GPC H-2002.5
GPC
-
Styrene divinylbenzene copolymer
≥ 13,000
15 µm
300 Å
20.0 x 500 mm
steel
F6102003
GPC H-2003
GPC
-
Styrene divinylbenzene copolymer
≥ 13,000
15 µm
500 Å
20.0 x 500 mm
steel
F6102004
GPC H-2004
GPC
-
Styrene divinylbenzene copolymer
≥ 13,000
15 µm
1,500 Å
20.0 x 500 mm
steel
F6102005
GPC H-2005
GPC
-
Styrene divinylbenzene copolymer
≥ 13,000
15 µm
5,000 Å
20.0 x 500 mm
steel
F6102006
GPC H-2006
GPC
-
Styrene divinylbenzene copolymer
≥ 13,000
15 µm
10,000 Å
20.0 x 500 mm
steel
F6102009
GPC H-2006M
GPC
-
Styrene divinylbenzene copolymer
≥ 12,000
15 µm
10,000 Å
20.0 x 500 mm
steel
F6700310
GPC H-G 8B
GPC
-
Styrene divinylbenzene copolymer
(guard)
15 µm
-
8.0 x 50 mm
steel
F6109010
GPC K-5001
GPC
-
Styrene divinylbenzene copolymer
-
15 µm
50 Å
50.0 x 300 mm
steel
F6109020
GPC K-5002
GPC
-
Styrene divinylbenzene copolymer
-
15 µm
150 Å
50.0 x 300 mm
steel
F6109025
GPC K-5002.5
GPC
-
Styrene divinylbenzene copolymer
-
15 µm
300 Å
50.0 x 300 mm
steel
F6109030
GPC K-5003
GPC
-
Styrene divinylbenzene copolymer
-
15 µm
500 Å
50.0 x 300 mm
steel
F6109040
GPC K-5004
GPC
-
Styrene divinylbenzene copolymer
-
15 µm
1,500 Å
50.0 x 300 mm
steel
F6700409
GPC K-G 20C
GPC
-
Styrene divinylbenzene copolymer
(guard)
15 µm
-
20.0 x 100 mm
steel

Product details

Product name
Maximum pressure
Usual flow rate
Maximum flow rate
Temperature range
Shipping solvent
USP
MW range
Exclusion limit
GPC FP-2002
5.0 MPa (50 bar)
5.0 to 10 mL/min
20 mL/min
20 to 60°C
Chloroform
-
100 - 5,000
8,000
GPC FP-G 8B
-
-
-
20 to 60°C
Chloroform
-
-
-
GPC KF-2001
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
THF
L21
100 - 700
1,500
GPC KF-2002
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
THF
L21
300 - 3,000
5,000
GPC KF-2002.5
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
THF
L21
300 - 8,000
20,000
GPC KF-2003
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
THF
L21
1,000 - 50,000
70,000
GPC KF-2004
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
THF
L21
7,000 - 300,000
400,000
GPC KF-2005
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
THF
L21
50,000 - 2,000,000
4,000,000
GPC KF-2006
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
THF
L21
150,000 - (20,000,000)
(20,000,000)
GPC KF-2006M
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
THF
L21
1,000 - (20,000,000)
(20,000,000)
GPC KF-G 8B
-
-
-
20 to 60°C
THF
L21
-
-
GPC KF-5001
-
-
-
-
THF
L21
100 - 700
1,500
GPC KF-5002
-
-
-
-
THF
L21
300 - 3,000
5,000
GPC KF-5002.5
-
-
-
-
THF
L21
300 - 8,000
20,000
GPC KF-5003
-
-
-
-
THF
L21
1,000 - 50,000
70,000
GPC KF-5004
-
-
-
-
THF
L21
7,000 - 300,000
400,000
GPC KF-G 20C
-
-
-
-
THF
L21
-
-
Product name
Maximum pressure
Usual flow rate
Maximum flow rate
Temperature range
Shipping solvent
USP
MW range
Exclusion limit
GPC K-2001
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
Chloroform
L21
100 - 700
1,500
GPC K-2002
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
Chloroform
L21
300 - 3,000
5,000
GPC K-2002.5
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
Chloroform
L21
300 - 8,000
20,000
GPC K-2003
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
Chloroform
L21
1,000 - 50,000
70,000
GPC K-2004
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
Chloroform
L21
7,000 - 300,000
400,000
GPC K-2005
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
Chloroform
L21
50,000 - 2,000,000
4,000,000
GPC K-2006
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
Chloroform
L21
150,000 - (20,000,000)
(20,000,000)
GPC K-2006M
2.0 MPa (20 bar)
3.5 mL/min
4.5 mL/min
20 to 60°C
Chloroform
L21
1,000 - (20,000,000)
(20,000,000)
GPC K-G 8B
-
-
-
20 to 60°C
Chloroform
L21
-
-
GPC H-2001
1.5 MPa (15 bar)
3.5 mL/min
4.0 mL/min
20 to 60°C
Chloroform
L21
100 - 700
1,500
GPC H-2002
1.5 MPa (15 bar)
3.5 mL/min
4.0 mL/min
20 to 60°C
Chloroform
L21
300 - 3,000
5,000
GPC H-2002.5
1.5 MPa (15 bar)
3.5 mL/min
4.0 mL/min
20 to 60°C
Chloroform
L21
300 - 8,000
20,000
GPC H-2003
1.5 MPa (15 bar)
3.5 mL/min
4.0 mL/min
20 to 60°C
Chloroform
L21
1,000 - 50,000
70,000
GPC H-2004
1.5 MPa (15 bar)
3.5 mL/min
4.0 mL/min
20 to 60°C
Chloroform
L21
7,000 - 300,000
400,000
GPC H-2005
1.5 MPa (15 bar)
3.5 mL/min
4.0 mL/min
20 to 60°C
Chloroform
L21
50,000 - 2,000,000
4,000,000
GPC H-2006
1.5 MPa (15 bar)
3.5 mL/min
4.0 mL/min
20 to 60°C
Chloroform
L21
150,000 - (20,000,000)
(20,000,000)
GPC H-2006M
1.5 MPa (15 bar)
3.5 mL/min
4.0 mL/min
20 to 60°C
Chloroform
L21
1,000 - (20,000,000)
(20,000,000)
GPC H-G 8B
-
-
-
20 to 60°C
Chloroform
L21
-
-
GPC K-5001
-
-
-
-
Chloroform
L21
100 - 700
1,500
GPC K-5002
-
-
-
-
Chloroform
L21
300 - 3,000
5,000
GPC K-5002.5
-
-
-
-
Chloroform
L21
300 - 8,000
20,000
GPC K-5003
-
-
-
-
Chloroform
L21
1,000 - 50,000
70,000
GPC K-5004
-
-
-
-
Chloroform
L21
7,000 - 300,000
400,000
GPC K-G 20C
-
-
-
-
Chloroform
L21
-
-
